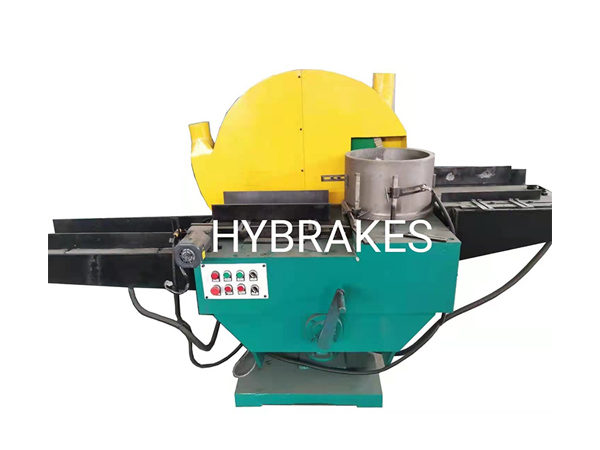

Grinding Machine for Brake Lining,Brake Lining Making Machine,Brake Lining Producing Machine

Application: This Grinding Machine for Brake Lining,Brake Lining Making Machine,Brake Lining Producing Machine is used to the out-arc grinding process for C.V. brake linings.

Performance Characteristics: This brake lining grinding machine adopts the steel plate and casting iron structure,with good stability, no vibration, three-dimensional adjustable, automatic feeding and discharging. The speed of host frequency is adjustable. Adopting diamond grinding wheel, having features of High precise grinding, Clear and smooth texture, Change fixture quickly and convenient operation. One person can operate 2-3 sets of this machine.

Technical Parameter:

Grinding Range:  Outer Radius: R135-R300mm

Width of brake lining : 60mm-260mm

Diameter of Grinding Wheel:  Ф800mm（Diamond grinding wheel）

Dynamic frequency: 15kw

Line speed: 60m / S

Grinding fixture is frequency control , Power is 0.75kw.

Per shift output: 3000-8000pieces per 8 hours

Total weight:  About 2500 kg
