Brake Shoe Making Machine,Brake Shoe Welder,Brake Shoe Producing Machine

Brake Shoe Making Machine,Brake Shoe Welder,Brake Shoe Producing Machine,Brake Shoe processing Machine.

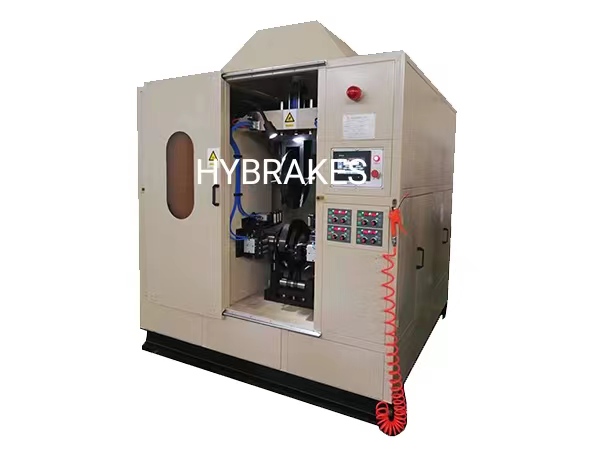

Application: This Brake Shoe Welding Machine is mainly suitable for welding process for heavy trucks brake shoes.

Performance and Characteristics:

The welding machine for brake shoe adopts the hydraulic clamping and automatic rotation mode to works in the order, plug welding firstly and then fillet welding.The feeding mode of the panel is optimized, and the clamping devices on both sides of panels are adjustable structure, which is conducive to the adjustment of symmetry. High efficiency and convenient operation etc.

Technical Parameters:

Welding workpiece range: Radius greater than 170mm.

Diameter of welding wire used: Solid core 1.0 / 1.2 / 1.6

Rated welding current (single machine): 500A

Current regulation range: 60-550A

Rated welding voltage (Single machine): 39V

Spindle revolution: 20-1000mm/min

Hydraulic system pressure: 7MPA

Workpiece jacking: Hydraulic

Workpiece rotation angle: 360 degrees

Efficiency: about 100 seconds each piece.
