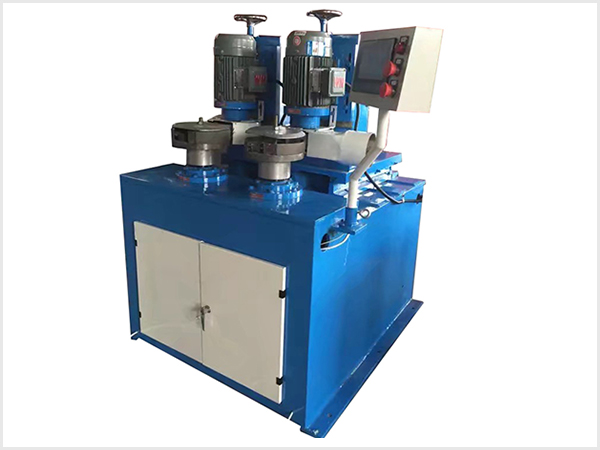

Brake shoe grinding machine,Brake Shoe Making Machine,Brake Shoe producing Machine

1. Application: it is suitable for grinding the external arc of the shoe and shoe assembly of medium and heavy vehicles.

2. Performance features: PLC programming control, touch screen operation, adjustable spindle speed frequency conversion, diamond cutter head, convenient clamping of tooling, flat grinding texture and high precision.

3. Technical parameters:

Grinding head motor: 11kw 1390 RPM grinding wheel diameter: ∮ 600mm

Feed motor: 0.75KW 1390 RPM hydraulic motor: 1.5kw 1440 rpm

Spindle feed: stepless adjustable grinding range: r150mm-250mm slice width 80mm-220mm

Processing accuracy: straightness ≤ 0.1mm, circular runout ≤ 0.15mm

Overall dimension: 1500mm × 900mm × 1350mm total weight: 2000kg

4. Equipment components:

Grinding machine single table 1 touch screen control cabinet 1 hydraulic workstation 1

One mould (installed on the grinder according to the user's requirements)
